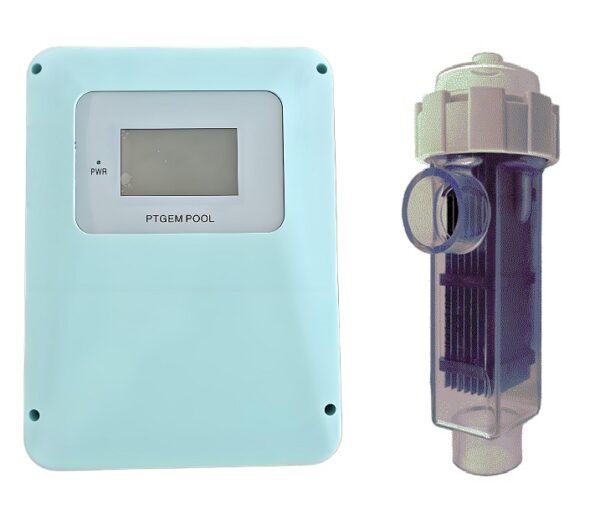

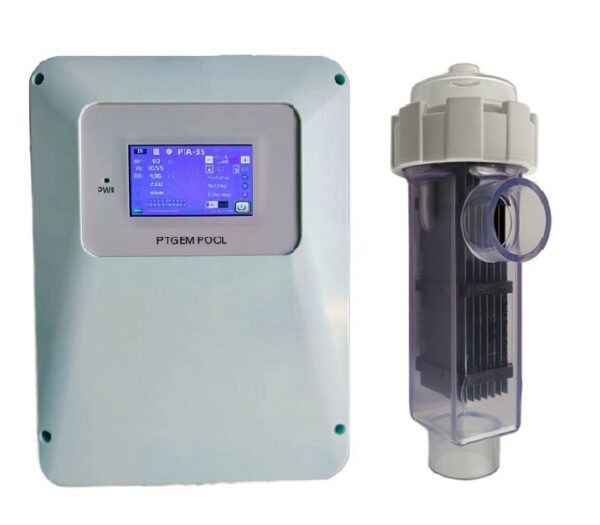

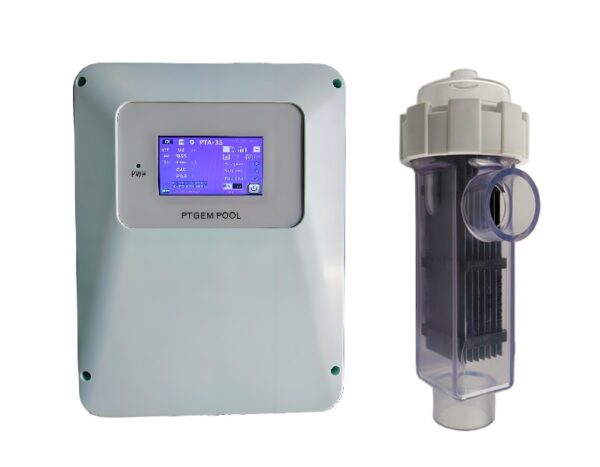

PTA-35 Salt Chlorinator Generator

Water treatment by electrolysis is a closed cycle in which salt is not consumed. Chlorine is generated from table salt dissolved in the water, without the need to store or handle chemical products. The chlorine generated destroys organic matter and patho-gens in the water and turns back into salt. Disinfection is more effective than in other systems due to the combined action of chlorine and the active oxygen that are generated during electrolysis.

PTA-35 salt chlorinator generator operates in fully automatic mode, its standard accessories include conductivity probe （TDS probe）, PH probe, ORP probe, water temperature measurement, and water flow switches, it can control the timed automatic operation of the filtration pump and also control the timed opening and closing of swimming pool underwater lights, it uses a pH probe and an acid (alkali) pump to maintain the pH value of the pool water at an ideal state, and controls the automatic operation of the salt chlorine device through an ORP probe to keep the residual chlorine in the pool water at an ideal state. you can adjust the chlorine production from 0 to 100% at will, its characteristics are as follows:

• Adjustment of chlorine production by switched mode power supply
• Power supply performance >90%
• Automatic switch-off owing to lack of water flow
• Automatic switch-off owing to the accumulation of gas in the cell, with automatic restart once the water flow is restored.
• Automatic voltage adjustment depending on the concentration of salt and the temperature, keeping continuous chlorine production.
• Automatic cleaning cycle of electrodes.
• Automatic restart in the event of supply failure.
• Automatically maintain a constant pH value.
• Automatically maintain a constant ORP value.
• Self-cleaning reverse polarity.
• High quality titanium cells produced by ourselves.
•  Transparent cell.
• Maximum working pressure:250Kpa.
• The brine strength is 3.5～7.0 Gram/l （Salinity 3,500～7,000 PPm）.
• The cell lifetime is not less than 10000 hr.
• The pool capacity: Cool climates for 180,000 liters. Hot climates for 120,000 liters.
• The inside diameter of the inlet & outlet pipe is 50 mm.

PTA-35 salt chlorinator generator operational parameters: The operating condition is 0～35 DCA/4～7 DCV. The output is 35 Gram active chlorine/hr.

Salt chlorinator cell Features:
1, Quick installation, maintenance free and user friendly
2, No more purchasing, handling and storing chlorine chemicals
3, No more chlorine smell and itchy
4, Lowest running cost
5, High performance and efficiency mesh or plate electrodes
6, Clear cell case for easy electrodes inspection
7, Reverse Polarity Function – reduces calcium buildup on electrodes, resulting in less maintenance.
